6061 Aluminum
Frame
500W
Bike Power
48V 10Ah
Battery Capacity
45 Miles
Miles per Charge (estimate)
22MPH
Max Speed
330 Lbs
Payload Capacity
High-speed power with brushless power system, output 50 torque and strong power. It has been optimized by the SAMEBIKE team for a smooth, effortless riding experience even at 15 degrees uphill. You might like to take a little less time on the commute, quickly into town for shopping. Or simply tackle headwinds on the trail.
500W
Power
70 Nm
Torque


Adopt high performance car battery cell, Same battery, 40% more longer riding rang; 48v 10Ah stable and strong output. You can always enjoy a longer trip With over charge and power off protection,It is globally insured by CPIC.
18650
Car battery cell
45 MI
Max Range
Four bar system with front suspension fork and stable 4" fat tire, will absorb even the harshest terrain and provide you with a level of ride comfort. It turn the way to the grocery store/cafe/work/school into your playground!!!
4x20 inch
Fat Tire
All Terrains
Stones, Grass, Beach, Snow


Folding Frame,allowing you to bring it wherever you go and easily store wherever you are. Take your ebike anywhere, without the need for a bike rack. The electric folding bike will fold up and fit in your trunk, in your closet, and even under your desk.
40x32 inch
Folding size
25 KGS
Weight
Capability

LCD Dispaly
Turn on or off the bike,Keep track of your speed, pedal assist level and battery, with this perfectly placed LCD screen. Located on the handlebars of your folding e bike this easily viewable.

Shimano 7 Speed
The Shimano 7 speed gear shift system offers you more choice while riding in a variety of conditions. Along with the pedal-assist system, you can find any speed that suits your journey.

Dual disc brakes
Mechanical disc brakes provide superior braking performance and durability,which guarantee a safety riding.

Pedal Assist & Half Twist throttle
With seven levels of pedal assist, getting yourself anywhere on the folding electric bicycle can be as much of, or as easy, a workout as you want.The Half-twist throttle helps prevent accidental activation, protecting you from inadvertent injuries.

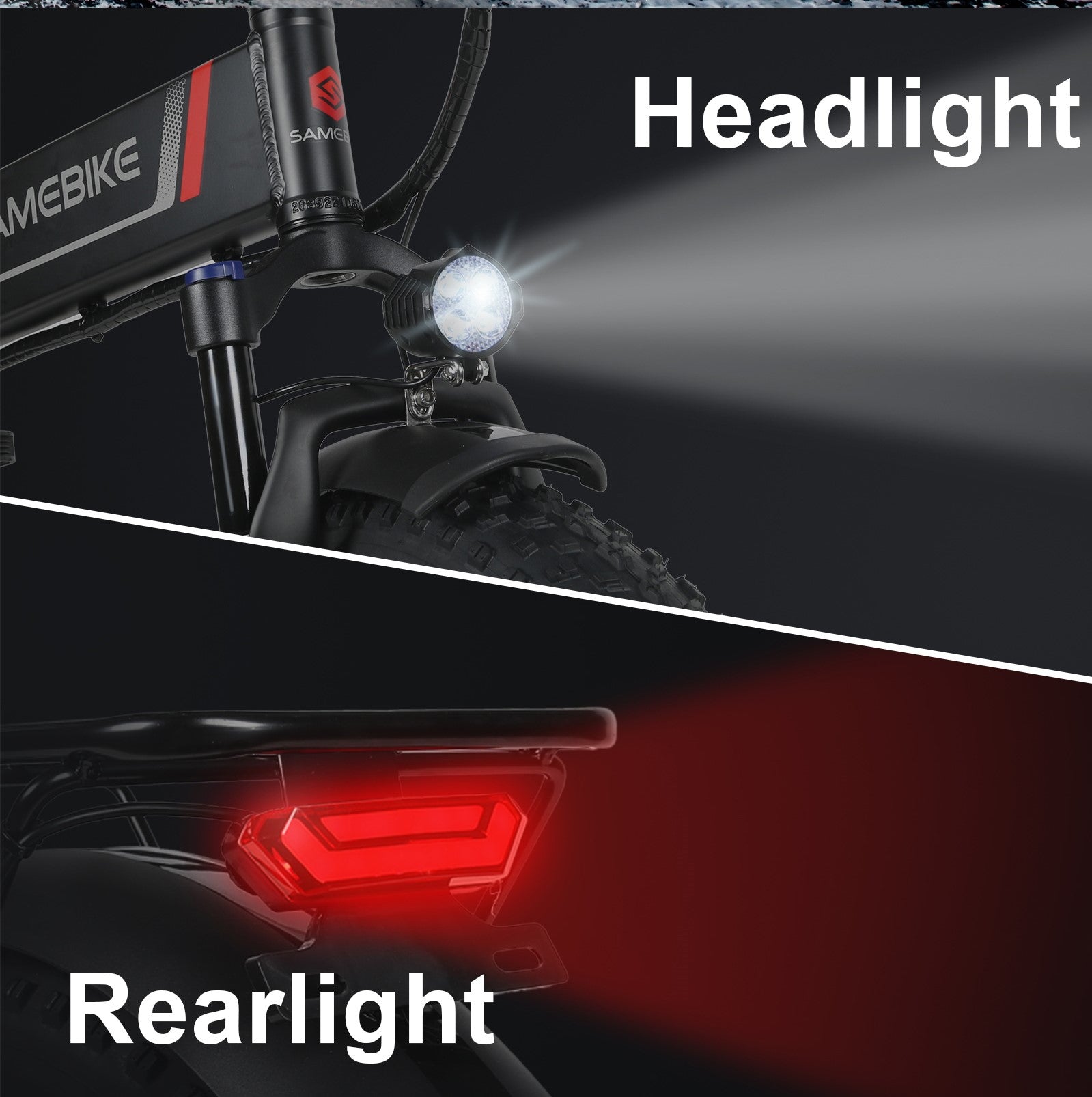

Integrated LED Light
The front and rear lights are integrated into the frame and powered by your bike’s battery. Activated during your ride, guarantee your safety while riding at night.

Strong Rear Rack
Easy to intall panniers, platforms, or baskets and Carry your cargo or pets.
- Bike Frame 6061 Aluminum frame
- Instrument LCD display+ USB charging port
- Transmission Shimano 7 speed gear shift system
- Brake Mechanical disc brakes
- Throttle Half twist throttle
- Front Fork Alloy front suspension fork with lockout and adjustment
- Chain KMC chain
- Tires 20" x 4" CTS fat tires
- Rim Alloy wheel
- Crank 170mm forged alloy
- Mudboard PVC
- Pedal Alloy pedal with reflectors
- Battery Capacity 48V 10AH
- Battery Type Lithium battery 18650ZN
- Mileage Pure Electric Mode: 25-35km; Moped Mode: 40-80km
- Power 48V 500W
- Top Speed 22mph
- climbing degree 25 degrees
- Gross Weight 35kg
- Payload 330lbs
- Certificates CE, MSDS, UN38.3, UL

- A -- Total Length 65"
- B -- Handlebar Height 46-52"
- C -- Wheelbase 42"
- D -- Minimum Seat Height 30"
- E -- Maximum Seat Height 37"
- F -- Chain Stay Length 19"
- G -- Standover Height 25"
- H -- Top Tube Length 24"
- I -- Wheel Diameter 23"
- J -- Head Tube Length 4"
- K -- Handlebar length 24"
- L -- Minimum Seat to Floor 31"
Allay your worries:
It is 90% pre-assembled when you receive it.
We can also provide technical guides to help you solve common cycling problems.
All bikes comes with a whole set of tool to help you build up the bike easily and quickly.
Packing list :
1 x Electric Moped Bicycle
1x Battery
1 x Charger
